Switch OFF the BTS cabinet and disconnect Abis connectors from DDF before offline start Disconnect the Abis connector from The DDF Switch ON the BTS cabinet breakers and connect the Laptop with BTS User Name “COMMTE” Password “COMMTE” Communication Port setting OR After connecting this window will be appear Go to Configuration-> BTS-SW Download-> to download BTS software After BTSSW download this window will appear Go to offline Files and select First File of Master File. Go to offline Files and select First File of DDL file. Click ok to start downloading SW BTS software starts to download. All these Files are downloaded Go to Configuration BTS commissioning Click start commissioning Edit Qmux Address Edit sector Mapping Check All Twin TRE’s. Click End Commissioning Click > Hardware setting>>Begin HW modification Go to configuration> BTS commissioning Go to start commissioning> Edit Q1 Address, Edit Sector Mapping and Twin TRA setting as in offline. Go to configuration> Hardware setting>“End Modification” to end online commissioning Online commissioning steps  Connect the Abis connector at DDF by verifying Tx/Rx cable properly.

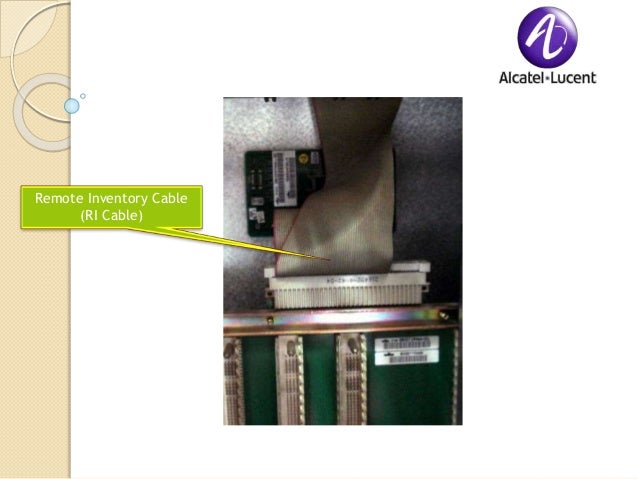

Alcatel-Lucent Converged Radio Access Network Solution 3 In the ever-evolving wireless mobile commu-nication world, subscriber loyalty is driven by handsets, services and prices. As an operator, your focus is on providing services at the lowest price and at the lowest Total Cost of Ownership (TCO) to maintain your profits. Senses fail let it enfold you deluxe edition torrent. ZThe Alcatel 9110-E BTS provides two-way radio communication between the PSTN or the Internet world and mobile Stations located in a single GSM cell. ZIt provides the air interface with the mobile staions (MS) and the Abis interface. Wall/pool and indoor/outdoor installation.

 OML will be established after primary Abis has      connected to DDF. Give hard reset to BTS after OML has established. Put site on Downloading from OMC. O&M will be established as downloading completes. The planner farming keygen software. Connect Laptop to BTS MMI port. Go to configuration>Hardware setting>Begin Hardware modification. Online commissioning steps  Go to configuration>BTS commissioning>start        commissioning.

Edit Qmux Address Edit sector mapping Check all Twin TRA setting. Click end commissioning and shift all modules from selected modules to available modules. Go to configuration>Hardware setting>End Hardware modification. Click “yes” when an automatically hardware modification window appears. Hw Audit will be run and all Hardware will be shown after sometime.

ON Line Commissioning Completed Successfully. Software components combiner Fan Unit Hardware Shown in software window Tre’s clock Alarm card Alarms window Transceivers Shown in window Transceivers Types  Four type of Transceivers in Alcatel Equipment  TRAGE>Gsm Single TRE  TRADE>Dcs single TRE  TGT09>Gsm Twin TRE  TGT18>DCS Twin TRE  TAGHE>High power TRE VSWR Shown in window Sectors Shown In window Station units BSC SBLs (security block levels) BTS OM & Sectors.Sec RSLs can be unlock from local Terminal.
